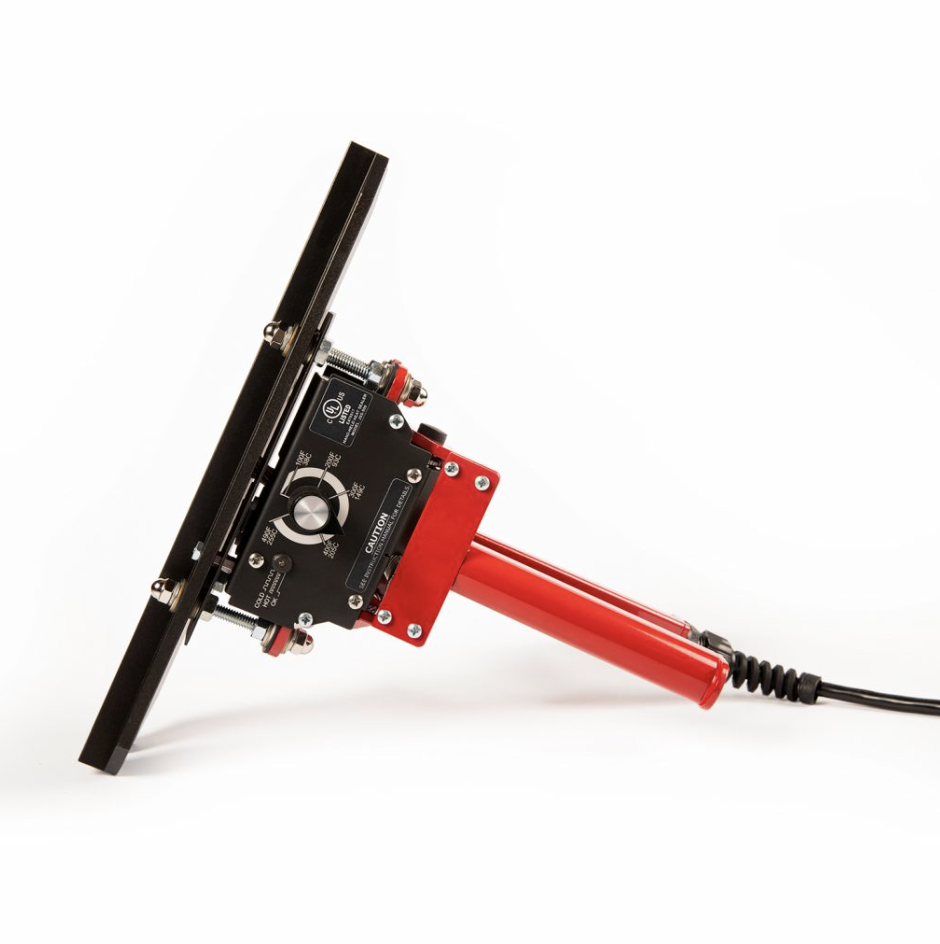

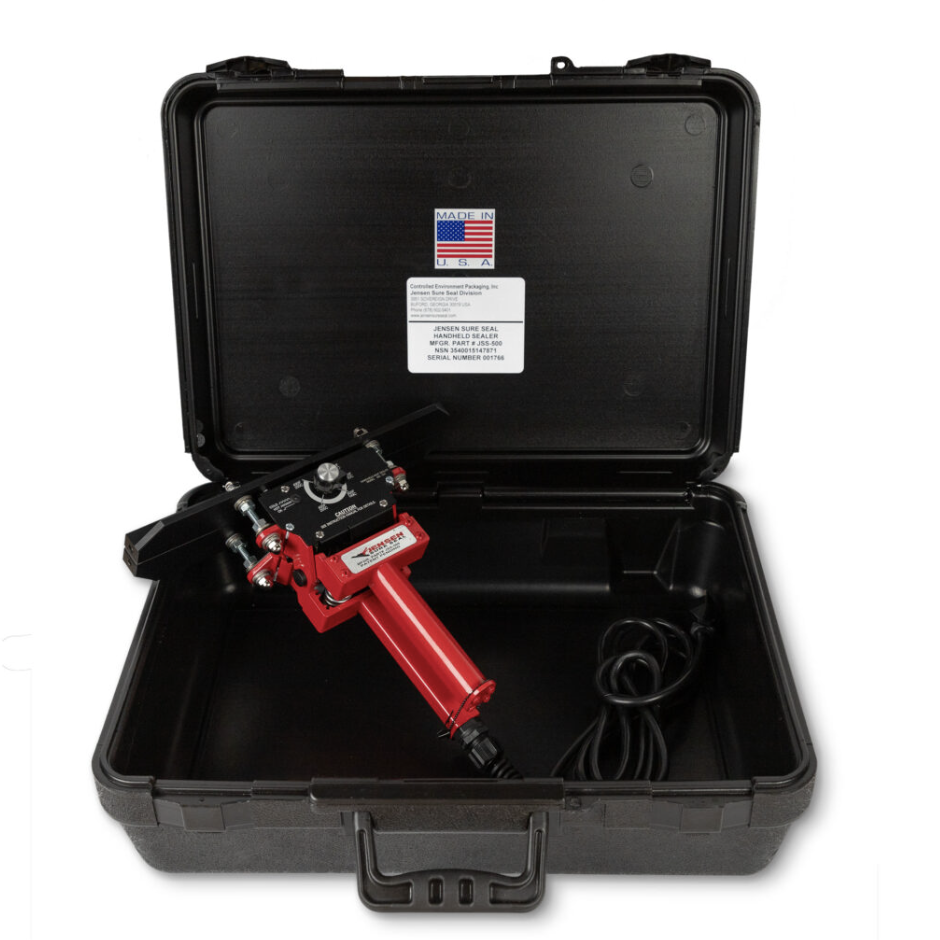

JSS-500
Hand-Held Heat Sealer

12” Long Heating Bar, 110 Volts

The Jensen Sure Seal™ JSS-500 combines portability, performance, and reliability in a variety of sizes. This American-made sealer is ideal for situations when the sealing jaws need to be brought to the work area and is perfect for sealing curved or long products. Although the JSS-500 is built to last, it is backed by a one-year limited warranty, with readily available replacement parts.

DOD National Stock #3540015147871

    • Standard heating bars ¾” wide 12″ long. (6″, 8″ and 10″ readily available)

    • Teflon-coated heating bars

    • Seals all barrier materials from 4 MIL LLDPE – 11 MIL

    • Heat controlled from 100⁰–425⁰ F

    • Five-minute warm-up, even heating

    • Only weighs 3.5 pounds

    • Spring-assisted handles

    • 10-ft. cord

    • Warm-up and ready light

    • Enclosed casing

    • Double-insulated flat seal – superior to a grooved seal

  • SEAL TIME = 3 SECONDS

    4 mil LLDPE (.004”)

    • Optimum Setting: 275ºF

    • Acceptable Seal Quality: 250ºF – 275ºF

    • Unacceptable Seal Quality at any other temperature

    4ga METPET/4mil LLDPE (.0045”)

    • Optimum Setting: 275ºF

    • Acceptable Seal Quality: 225ºF – 375ºF

    • Unacceptable Seal Quality at any other temperature

    CadPak-PL (.0032”)

    • Optimum Setting: 350ºF

    • Acceptable Seal Quality: 275ºF – 375ºF

    • Unacceptable Seal Quality at any other temperature

    CadPak-N (.0042”)

    • Optimum Setting: 350ºF

    • Acceptable Seal Quality: 300ºF – 375ºF

    • Unacceptable Seal Quality at any other temperature

    CadPak-HD100 (.0079”)

    • Optimum Setting: 375ºF

    • Acceptable Seal Quality: 325ºF – 425ºF

    • Unacceptable Seal Quality at any other temperature

    BPN-700 (.007”)

    • Optimum Setting: 375ºF

    • Acceptable Seal Quality: 300ºF – 400ºF

    • Unacceptable Seal Quality at any other temperature

    CadPak-HD200 (.0103”)

    • Optimum Setting: 375ºF

    • Acceptable Seal Quality: 350ºF – 425ºF

    • Unacceptable Seal Quality at any other temperature

    Note: These tests were performed with the equipment used in the intended upon fashion which is with manual pressure applied to the handles. Depending upon who performs the sealing operation, slightly different results could be obtained. It is recommended to do some test sampling using this chart as a guide to a starting point.

  • All parts defective in material and workmanship. Defects that have resulted from improper or unreasonable use or maintenance, accident or unauthorized tampering alteration or modification are not covered.

    Limitation on Liability

    Where permitted, the provisions of this Limited Warranty are in lieu of any other written warranty, whether expressed or implied, written or oral, including any warranty of merchantability of fitness for a particular purpose.

    For How Long

    The Jensen Sure Seal™ Limited Warranty lasts for one (1) year from the end user purchase date.

    What We Will Do

    We will, at our sole option, repair or replace any defective part within a reasonable period of time.

    What We Will Not Do

    Pay shipping or transportation charges from you to us.

    What you must do to obtain Limited Warranty service

    Return the product with proof of purchase and in the original packaging from an authorized Jensen Sure Seal™ dealer to Controlled Environment Packaging, Inc. 3951 Sovereign Drive Buford, Georgia USA 30518. Include your evaluation of the defect.

    What you must do to obtain Limited Warranty service

    This Limited Warranty is fully transferable provided that the current owner furnishes the original proof of purchase from an authorized Jensen Sure Seal™ dealer. The maximum liability of Jensen Sure Seal™ shall not exceed the actual purchase price paid by you for the product. In no event shall Jensen Sure Seal™ be liable for special, incidental, and consequential or indirect damage INCLUDING BUT NOT LIMITED TO ANY MODIFICATIONS OR ATTEMPTS TO REPAIR BY THE CUSTOMER.

    1. Check the sealer heating bars (jaws) to be sure they are clean and free of any residue.

    2. Rotate the knob on the temperature dial to the recommended sealing temperature specified by the manufacturer of the barrier material you will be using. Remove any flammable objects surrounding the sealer.

    3. Plug the electrical cord into a 110Volt outlet. LED (light) will begin to blink. Note: Heating bars will immediately begin to heat up.

    4. Wait 5 to 6 minutes for the sealer to reach the set temperature. LED will stay on when set temperature is reached.

    5. Now you are ready to begin sealing. Position the two (2) pieces of barrier material (sealable sides together) squarely together and clamp the jaws shut. Count the appropriate number of seconds (dwell time) as recommended by the material manufacturer. Release the jaws and inspect the seal. The seal will require a few seconds to cool.

    6. When sealing in a continuous line, overlap each sealing application by approximately ½”.

    7. Inspect all your seals after completion.

    8. Unplug the sealer when finished and allow it to cool for one (1) hour before storing.

    Note: Do not carry the sealer by the cord. Use the handle.

    Weekly Maintenance: Check the Stud Assembly for loose nuts and tighten if needed.
